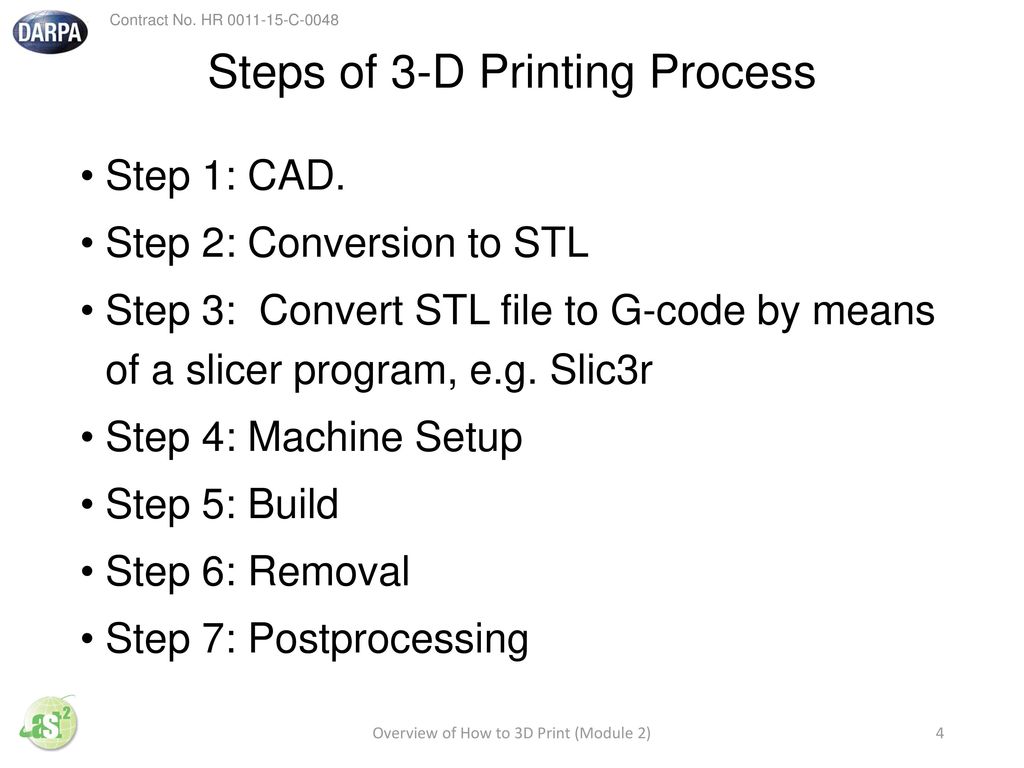

E steps 3d printer. 3D printing is a kind of computer controlled additive manufacturing It works by taking a digital 3D model, translating it to a series of horizontal slices in machine language, and building the model in three dimensions using a number of different technologies. The normal method has been via your printer esteps in the firmware Easy to do but if you do want to change firmware settings you need to be sure on what you are doing and take it carefully A bit like playing with the registry on a Windows computer!. #define default_axis_steps_per_unit {axis_steps_per_unit_x, axis_steps_per_unit_y, axis_steps_per_unit_z, axis_steps_per_unit_e} Each of these values is calculated separately For belt driven axes (usually x and y), the steps per unit is determined by the number of steps per revolution divided by the idler teeth, divided by the belt pitch (ie.

A very common problem found in 3D printing is that your ESteps aren’t perfectly dialed in This can result in little bulges or spots that are too thin Most 3D printer manuals suggest that you check your Esteps when you begin, but the description of how to test can be a bit confusing sometimes This quick video will walk you through how to check your Esteps. Include your 3D printer serial number (found on the back of the printer at the base of the electronics enclosure) and request your Esteps If your 3D printer is not equipped with a Graphical LCD controller, view your current Extruder steps per unit with the View EEPROM Settings GCODE command M501. WELCOME ON OUR 3D PRINTER FIRMWARE PAGE, HERE YOU CAN DOWNLOAD THE LATEST MARLIN FIRMWARE COMPILED AND READY TO FLASH for now there are a few creality firmwares and one Geeetech firmware for use with Leadscrews and the REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER please check which one you need both are online.

Use M92 to set the stepsperunit for one or more axes This setting affects how many steps will be done for each unit of movement Units will be in steps/mm unless inch mode is set with G (which requires INCH_MODE_SUPPORT). The normal method has been via your printer esteps in the firmware Easy to do but if you do want to change firmware settings you need to be sure on what you are doing and take it carefully A bit like playing with the registry on a Windows computer!. The next thing we'll have to update is your printer's Estepspermm Your slicer will generate GCode for your printer, which will tell it to extrude a certain length (in millimeters) of filament Your printer takes those lengths of filament and calculates how much it should rotate your Titan's stepper motor to push out the expected amount.

While landing on a whole step is easy enough;. And finally, I don't really get why don't you already know where to change the E steps since you already have done the same with other reprap printers You have to edit the same "Configurationh" file Find the line #define DEFAULT_AXIS_STEPS_PER_UNIT {800, 800, 0, 2}. 3D printers can be difficult to get the hang of as there are dozens of options to tinker with at first That said, there are only a few steps to take whenever you make a change We’ve addressed these above and now, hopefully, you’re ready to start printing Good luck and most importantly, have fun.

Increase the flow to offset the e steps that can’t be changed Not the best fix but it’s useable!. We are looking for 3D printing applications with a strong focus on innovation. You will need to set the extruder calibration on your 3D printer Before you can calculate the last value, you need to ensure that the correct amount of plastic is extruded for a set extruder distance, perform a simple test extrusion, measure the results, and calculate the change Don’t worry — it’s not difficult This.

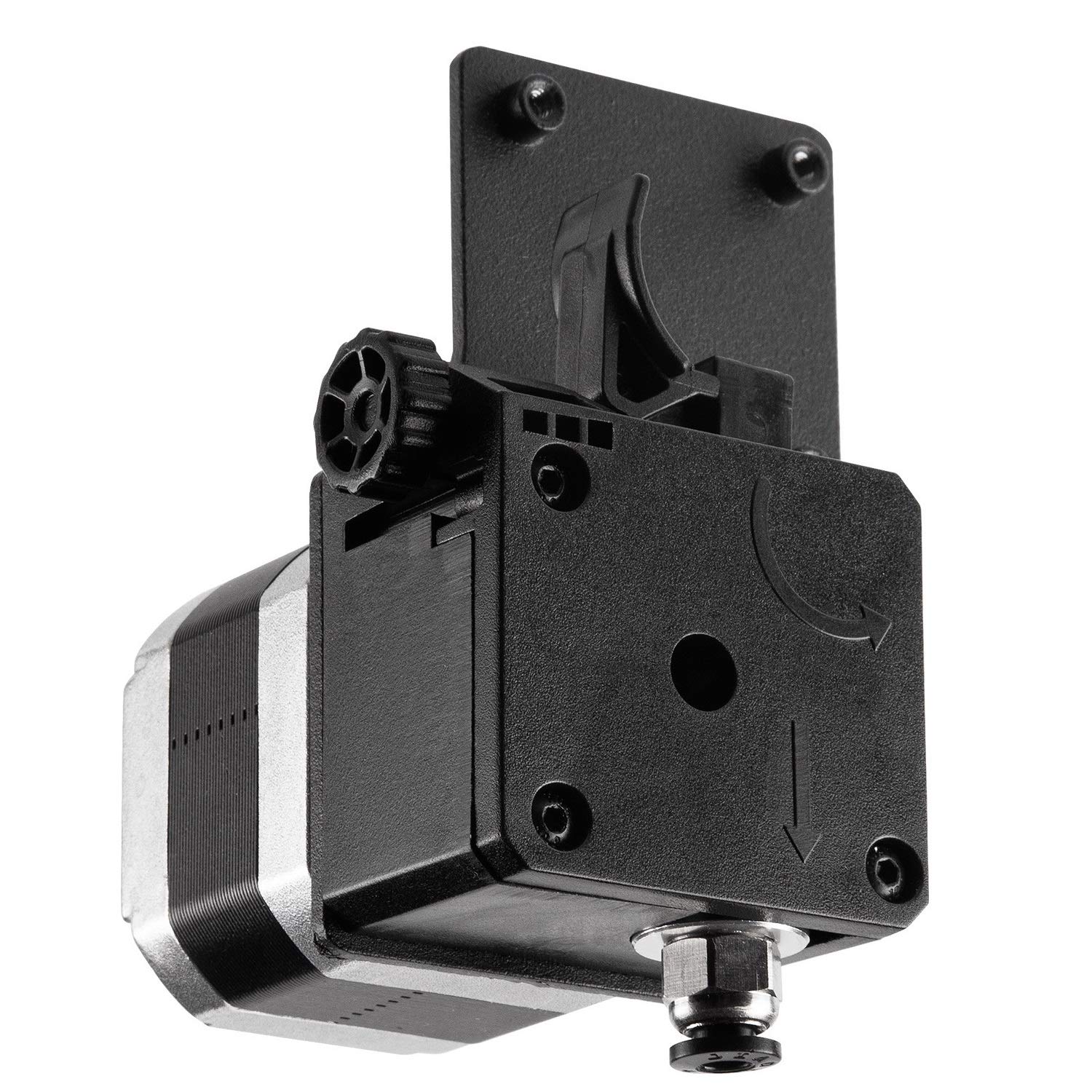

These settings do vary from printer to printer because they have different designs, weights and so on For example, 3D Printer Wiki says to set Jerk to 8 and the Acceleration to 800 for the Wanhao Duplicator i3 Once you’ve tuned your settings, use this Ghosting Test to analyze the levels of ghosting and whether it’s better or worse You want to look for ghosting of sharp edges (on the. How to calibrate the 3D printer before an extruder change If the extruder is changed or modified, for example by an D Titan Aero, the Steps/mm of the extruder motor must be adjusted Image 1 D Titan Aero extruder Source D The first thing is to know how many Steps/mm the 3D printer uses. Today I'm going to show how to calibrate esteps per mm of any 3D printer MARLIN compatibleIf you've printed a cube and tried adjusting e steps calibration,.

Download files and build them with your 3D printer, laser cutter, or CNC Thingiverse is a universe of things. Today I'm going to show how to calibrate esteps per mm of any 3D printer MARLIN compatibleIf you've printed a cube and tried adjusting e steps calibration,. Today, many desktop 3D printers use a numerically controlled programming language made up of a series of commands called GCode Most of these commands start with a G (hence the name), but there are also some common machinespecific codes that start with an M These commands tell your 3D printer exactly what actions to perform – where to move.

Description The Duplicator i3 ships with the esteps incorrectly set for the gear used on the extruder You should follow this procedure to calibrate your esteps If you make any mechanical changes to the extruder, such as changing the gear or motor, you should repeat this procedure to recalibrate Process Use calipers and a pen. 1 Connect printer to Pronterface Next step in the extruder calibration process is to connect the printer to the computer via USB cable Open 2 Get current extruder steps 3 Measure 0 mm of filament 4 Extrude 180 mm of filament 5 Measure the. Step 1 Measure out 100MM of filament Load filament in the extruder – measure up from the extruder 100mm 5 Put three Step 2 PreHeat hot end and extrude 100mm Next, warm your extruder up to the correct temperature, then extrude 100MM Step 3 Figure out the difference in extrusion I had.

Eshop by Prusa Research as, company founded by Josef Prusa, one of the RepRap core developers We're selling Original Prusa 3D printers (incl Prusa i3), filaments (especially our inhouse made Prusament), resins, and other accessories for 3D printing. This page serves as a companion for this video 3D printer calibration revolutionised Step by step to better print quality It aims to make calibrating your 3D printer as easy as possible If you find it helps you and you would like to say thank you, here is a donation link PayPalme. A simple online calculator to calibrate your 3D Printers esteps and flow.

Download files and build them with your 3D printer, laser cutter, or CNC Thingiverse is a universe of things. Description The Duplicator i3 ships with the esteps incorrectly set for the gear used on the extruder You should follow this procedure to calibrate your esteps If you make any mechanical changes to the extruder, such as changing the gear or motor, you should repeat this procedure to recalibrate Process Use calipers and a pen. #define default_axis_steps_per_unit {axis_steps_per_unit_x, axis_steps_per_unit_y, axis_steps_per_unit_z, axis_steps_per_unit_e} Each of these values is calculated separately For belt driven axes (usually x and y), the steps per unit is determined by the number of steps per revolution divided by the idler teeth, divided by the belt pitch (ie.

How to do the Extruder Calibration ?. Today I'm going to show how to calibrate esteps per mm of any 3D printer MARLIN compatibleIf you've printed a cube and tried adjusting e steps calibration,. FDM And SLA 3D Printer Guides, detailed Reviews, and carefully tuned Slicer Profiles 3DPrintBeginner is the home for 3D printing lovers FDM And SLA 3D Printer Guides, detailed Reviews, and carefully tuned Slicer Profiles E Step Calibration February , 0 843 BioFusion Blue Fire – Yondu Udonta Bust May 27, 19 0 626.

While landing on a whole step is easy enough;. PrusaPrintersorg is community website for all Prusa 3D printer owners or fans You can find here a lot of interesting 3D models, community forum, world map of users with Original Prusa 3D printers, indepth articles about 3D printing and our amazing calculator!. EWaste 60$ 3DPrinter This project describes the design of a very low budget 3D Printer that is mainly built out of recycled electronic components The result is a small format printer for less than 100$First of all, we learn how a generic CNC system works (by assemblin.

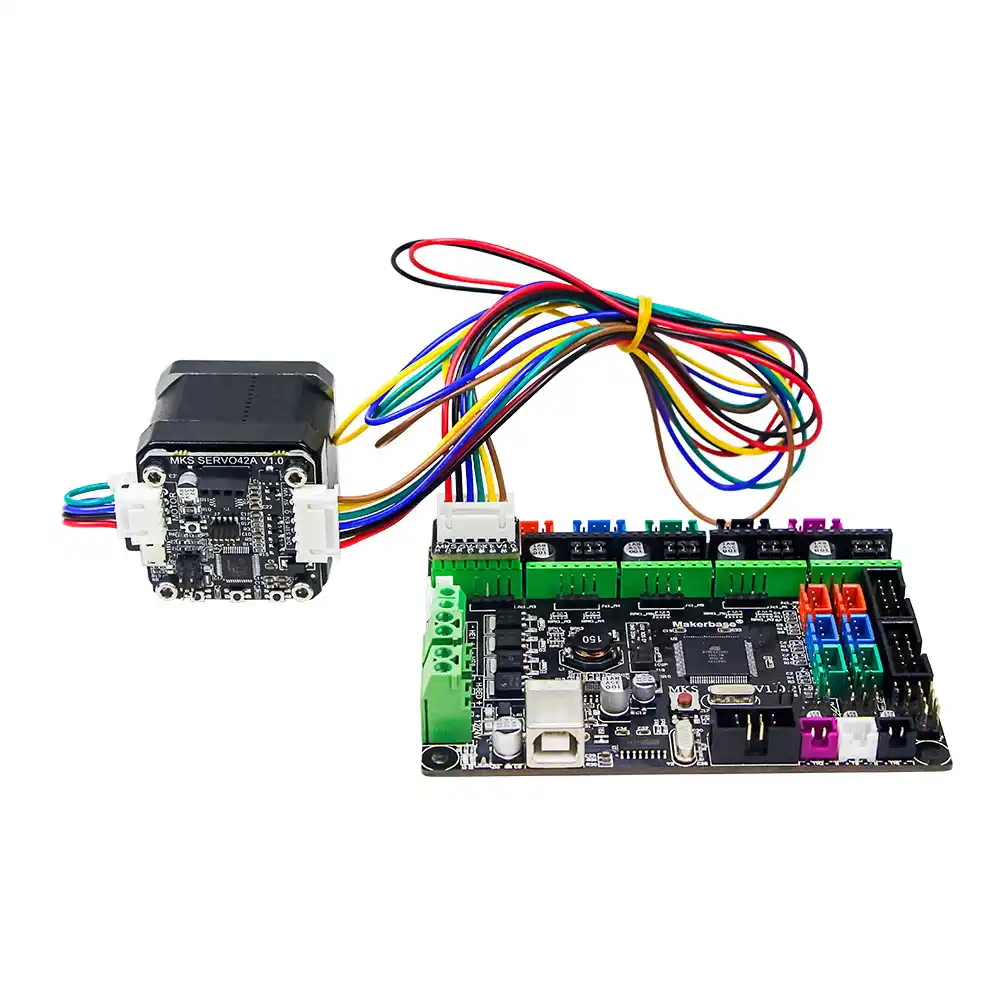

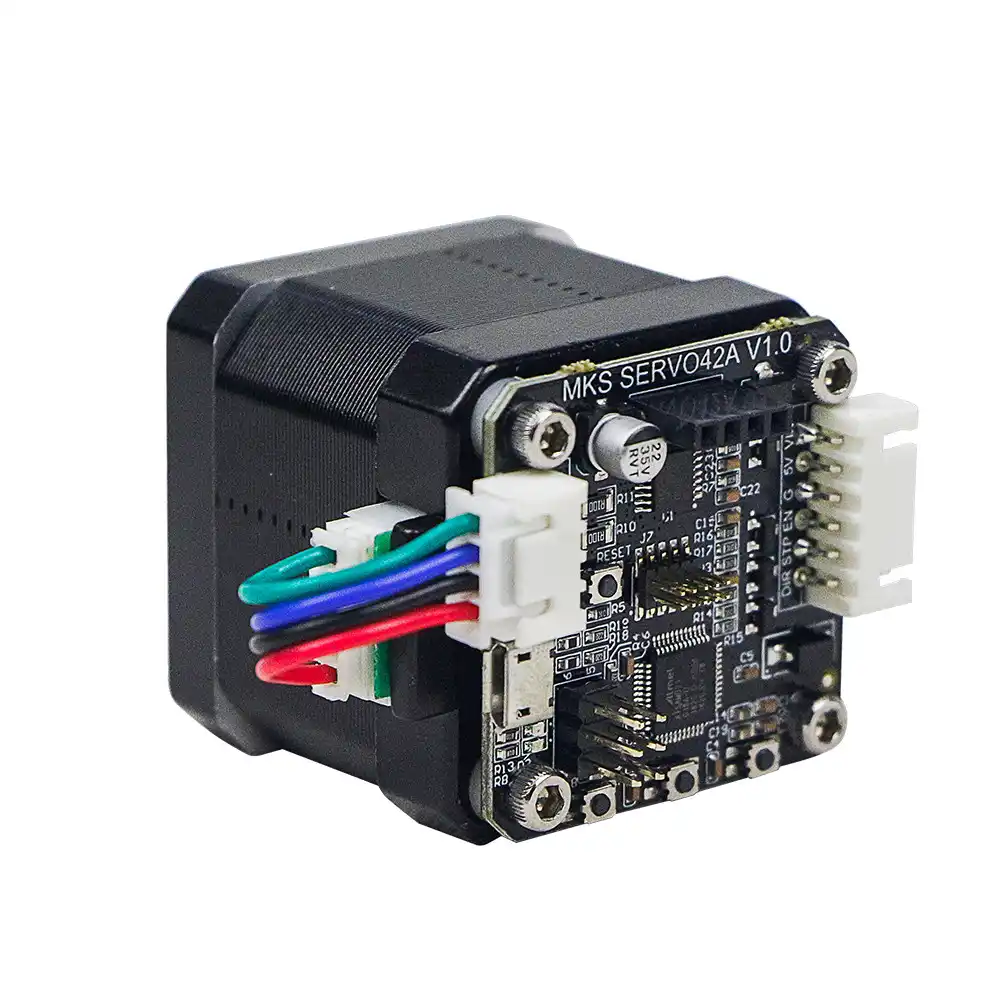

When you tell your 3d printer to print exactly 100 MM of filament, chances are you’ll land on a microstep Since these microsteps don’t ‘lock in’ precisely like whole steps do, you’ll want to calibrate in your stepper motor. It can be confusing for a novice user to know what Estep calibration means To break down the term, the “E” refers to the extruder and the “step” refers to the steps of the extruder stepper motor So, instead of saying the entire phrase, the 3D printing community has adopted the term “Estep”. Prusa Research is a 3D printing company based in Prague, Czech Republic It was founded by Josef Prusa, one of the core developers of the Open Source project RepRap, in 12 as a oneman startup and grows to a 400 team now His opensourced Prusa i3 design is according to 3DHubs the most used 3D printer in the world We are shipping more than 6000 Original Prusa i3 printers per month to over.

RepRap 101 Calibrating your extruder, part 1 Esteps 1) Make sure your hotend is up to temperature for the filament you have loaded, and that your idler tension is at least 2) Find a spot on your extruder from which you can make a reliable measurement, and make a mark on the filament 1mm. In order to do an accurate flow rate calibration, the Extruder E steps need to be calibrated first I covered the extruder calibration process in this article Sometimes, printers come with a goodenough estep value, but in order to get accurate prints it’s recommended to double check this. #define default_axis_steps_per_unit {axis_steps_per_unit_x, axis_steps_per_unit_y, axis_steps_per_unit_z, axis_steps_per_unit_e} Each of these values is calculated separately For belt driven axes (usually x and y), the steps per unit is determined by the number of steps per revolution divided by the idler teeth, divided by the belt pitch (ie.

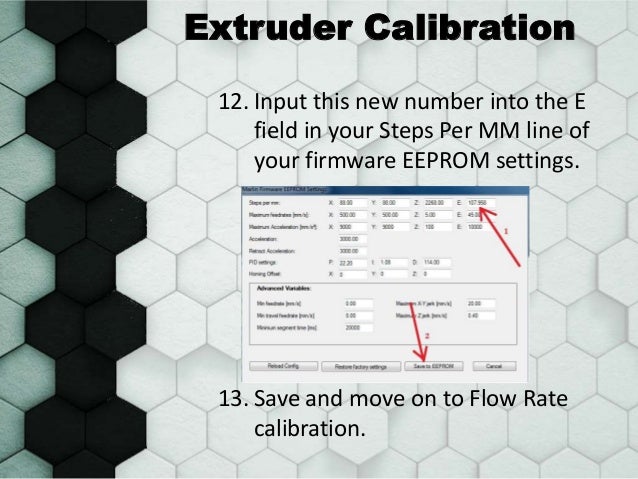

It provides a way to override the stepspere setting in your firmware (the number of stepper steps required to pull 1mm of filament into your extruder) It gets output in the preamble of the gcode file as an M92 command, which should cause the printer (if it honors the command) to use that value for the print (and any subsequent prints until. In the pronterface command terminal enter M92 EXXXXX where X is your new steps/mm value Now enter M500 to save the new extruder steps setting to the 3D Printers EEPROM Lastly check your new settings are saved using the M501 command That’s it you have now calibrated your extruder steps/mm for your 3D Printer. ESTEPS is printer specific (hardware based), which is why it is a printer level setting, and saved to the machine's memory The FLOW or EXTRUSION MULTIPLIER is the variable you calculate to take into account the hotend/filament differences, hence why it is at the slicer level as it has a high likelihood of being changed frequently.

1 share Report Save level 2 10 months ago Thanks for the quick response I will give this a shot I'm newer to 3D printing I've had it for about a month and been having lots of under extruding issues 2 share Report Save level 1 8. Your 3D printer extrudes and retracts precise amounts of filaments in order to create your printed masterpieces Well, it does if it’s properly calibrated Calibrating your extruder is one of the most important, as well as one of the most overlooked, things you can do to your machine. Download files and build them with your 3D printer, laser cutter, or CNC Thingiverse is a universe of things.

D Online 3D Printing Forum Forums > BigBox 3D Printer > Calibration, Help, and Troubleshooting > My esteps should be ~9 based on information but I'm finding 729 is more reliable in terms of measurement although from last nights print I need to put it nearer 800 for good print results. Step 7 Update the machine with the new ESteps calculated by sending M92 E(new estep value) Example M92 E426 Step 8 Send M500 (stores new values in EEPROM) Step 9 You can repeat this process over again to verify your results Ideally, your measurement should be 10mm after extruding If you find your measurements are inconsistent, your extruder may be slipping and adjustment might be. We are looking for 3D printing applications with a strong focus on innovation.

In order to do an accurate flow rate calibration, the Extruder E steps need to be calibrated first I covered the extruder calibration process in this article Sometimes, printers come with a goodenough estep value, but in order to get accurate prints it’s recommended to double check this. The next thing we'll have to update is your printer's Estepspermm Your slicer will generate GCode for your printer, which will tell it to extrude a certain length (in millimeters) of filament Your printer takes those lengths of filament and calculates how much it should rotate your Titan's stepper motor to push out the expected amount. This tool is to help you calibrate the ESteps for your 3D printer Just follow the steps below to get your new ESteps The new value can be set by sending the Gcode command below to your printer or you can also put it into your printer firmware.
